The McCloskey R105 High Energy Durable Screener provides the best solution for operators who don’t require the capacity of the larger screener models. Built around McCloskey International’s highly productive High Energy Screenbox, the R105 screener has all the class leading features of the R-Range, such as high quality components, durability and reliability. Offering the highest stockpile and largest screening area in its class while meeting the European transport regulation width, the R105 represents the most cost effective productivity and quality on the market in a versatile and mobile package.

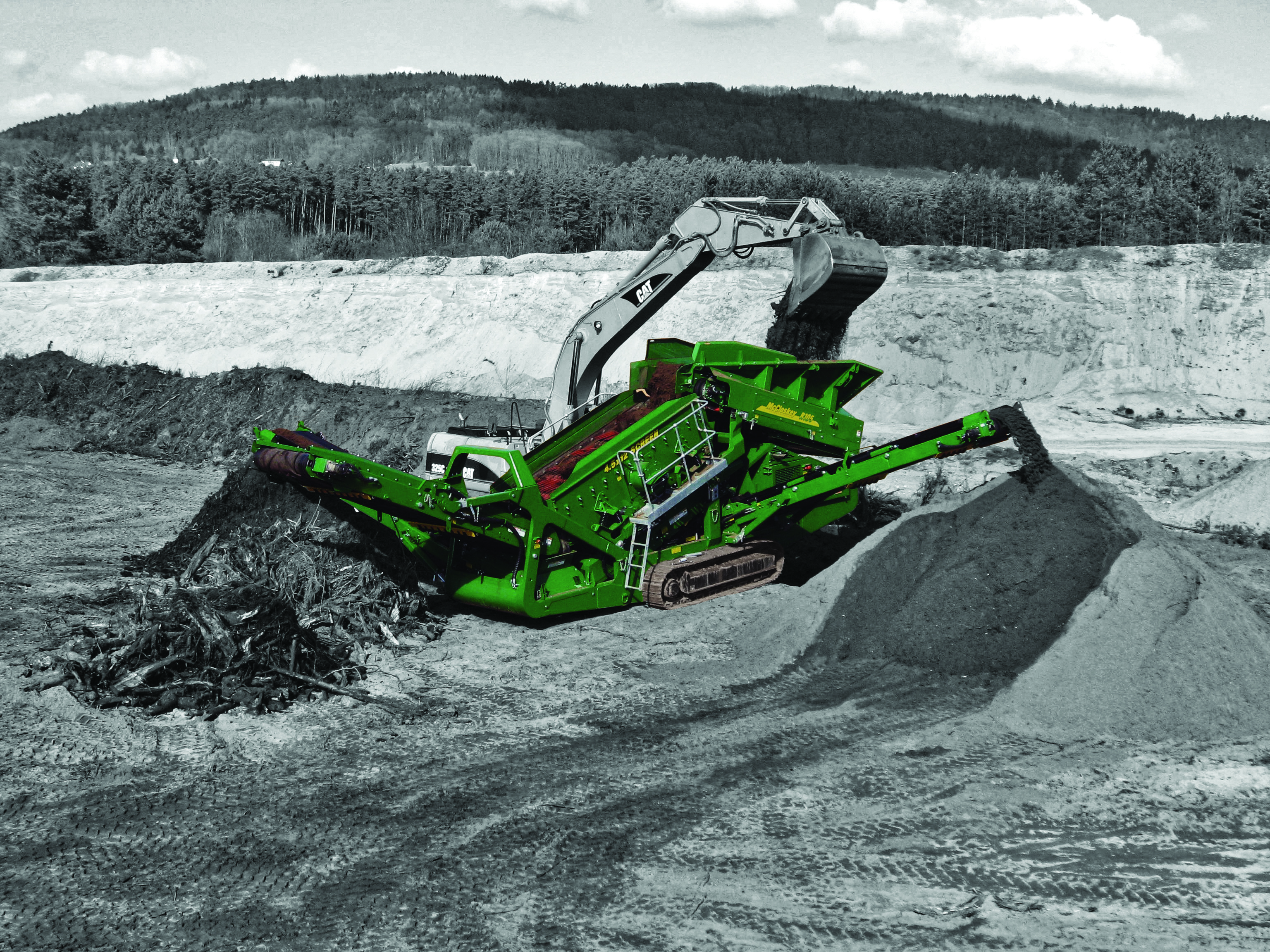

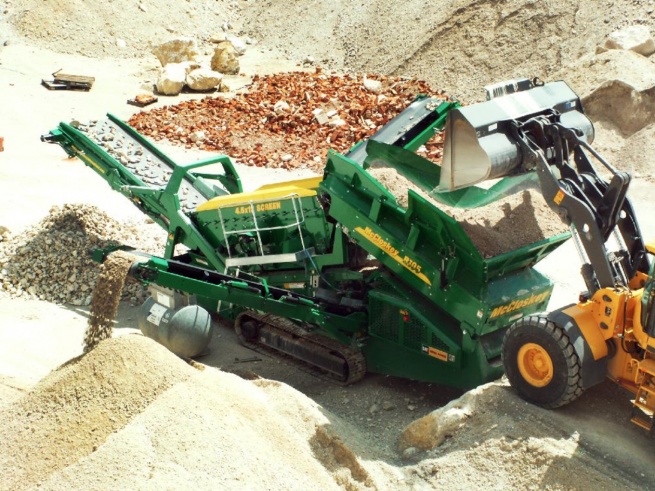

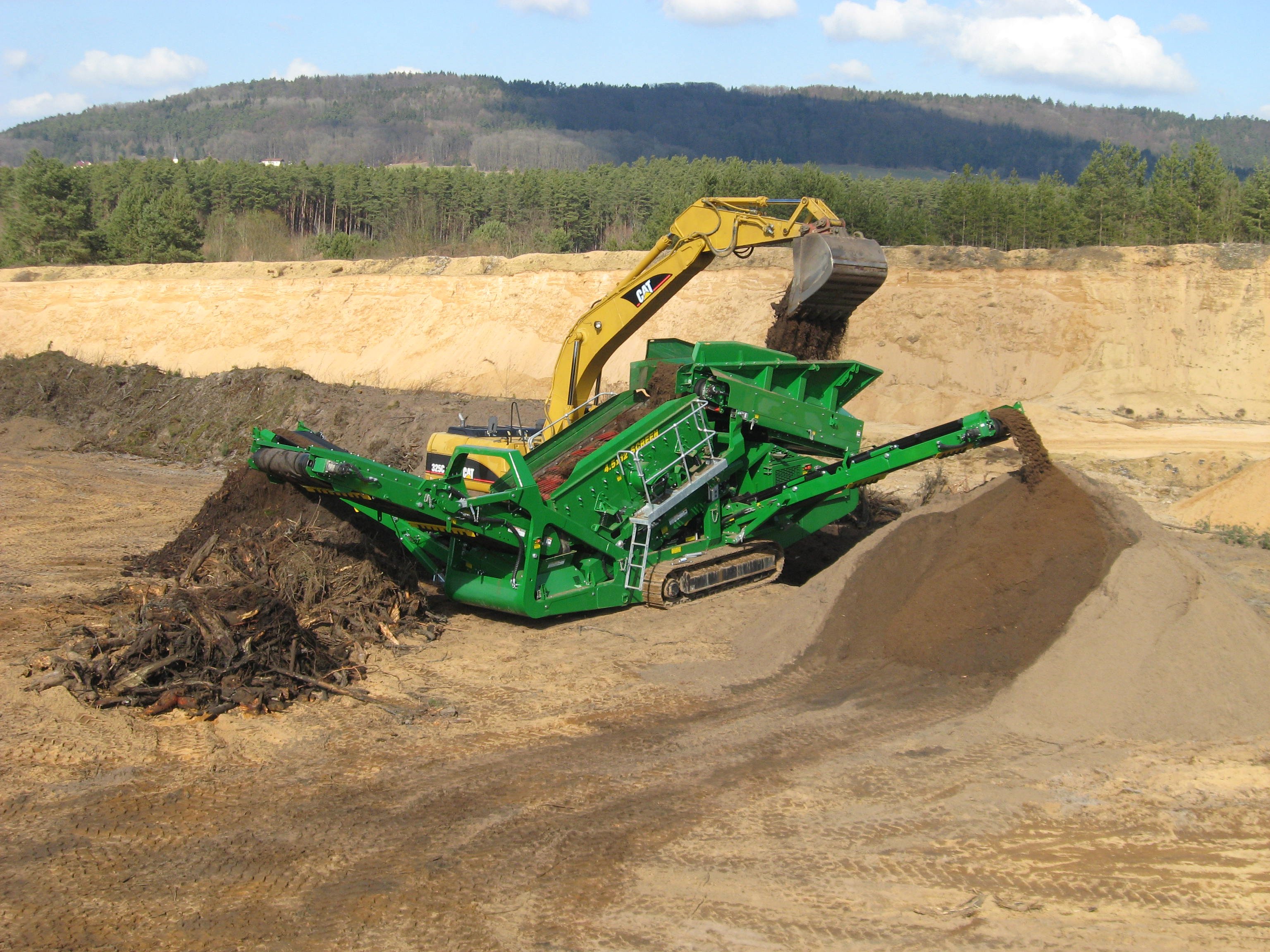

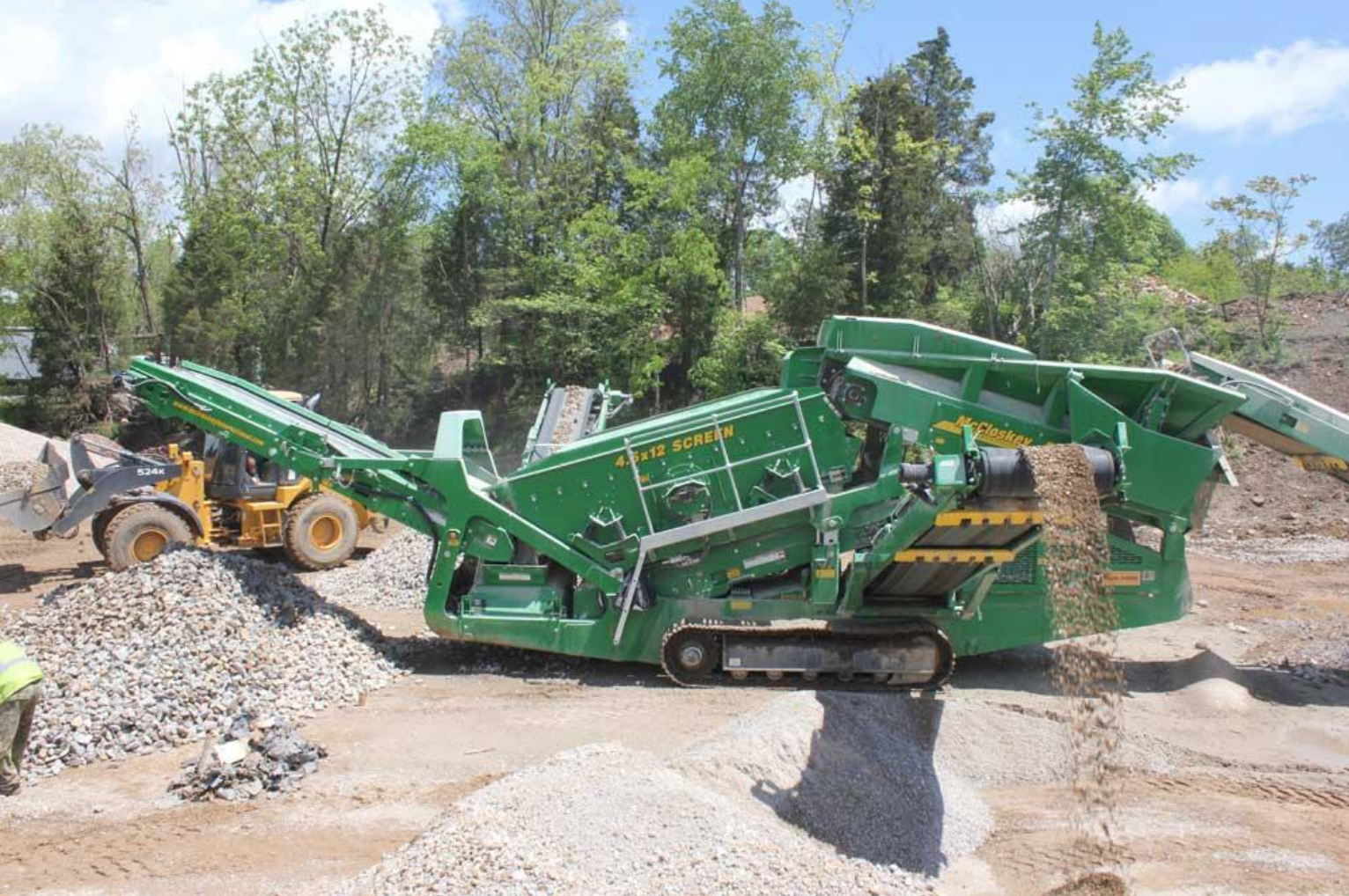

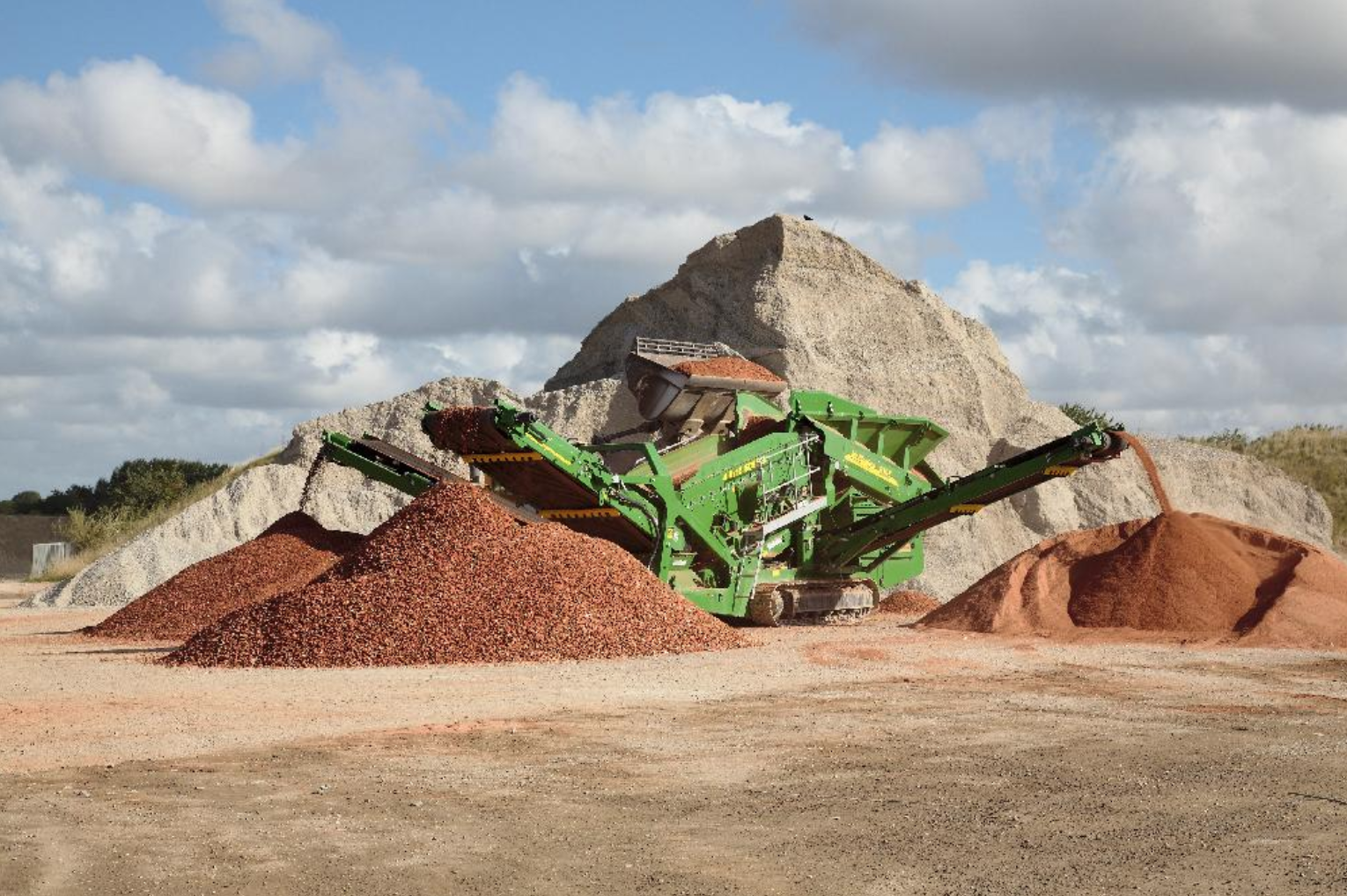

R105 Screener
Specification
| Engine | 130 HP (98 kw) |
| Screenbox Top Deck | 3.66m (12′) x 1.370m (4′-6″) |
| Screenbox Bottom Deck | 3.455m (11.4′) x 1.370m (4′-6″) |
| Feed Conveyor Belt Width | 1200mm (48″) |
| Stockpile Height – Tail Conveyor | 3.45m (11′-4″) |
| Stockpile Height – Fine Product Side Conveyor | 3.6m (11′-10″) |
| Stockpile Height – Mid Product Side Conveyor | 3.63m (11′-11″) |
